Model DIAMANTE ABZ
In 2000 Buratti Meccanica acquired OMB, a company which is well-known in the abrasive disk cutting machine industry.

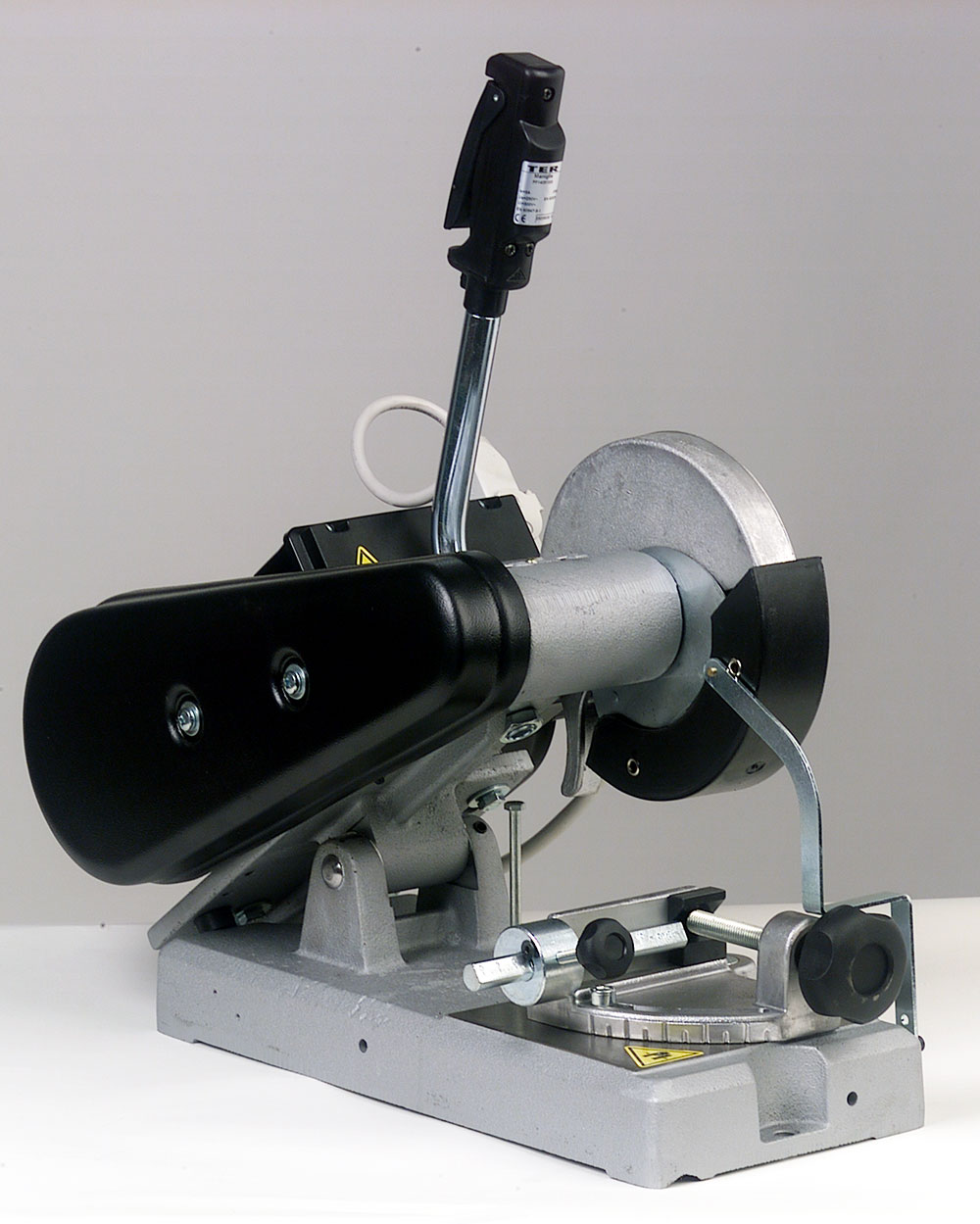

The ABZ diamond series is currently in production and it is particularly suitable to cut pins, punches, columns and guide bushings, cobalt steel bars, stainless steel special profiles, aluminum, steel, nylon, copper, etc. does not leave burrs and does not alter the hardening treatment.
The main technical features of the OMB abrasive disk cutting machine – ABZ diamond series are the following:
- 1 HP / 0.75 kW engine
- three-phase 380V power supply or single-phase 220V for hobbyists available on request
- abrasive disk for high speeds at 150 x 1-1.5 mm, rotation speed around 6000 revolutions, graduated rotating vice for cuts up to 45 degrees
- start control in the handle using a low voltage microswitch
- total disc crankcase cover protection
ABRASIVE DISK DIAMETER | ROTATION SPEED | TILT GRIP |
---|---|---|
∅ 150 x 1 – 1.5 mm | 6.000 RPM | Max. 45° |

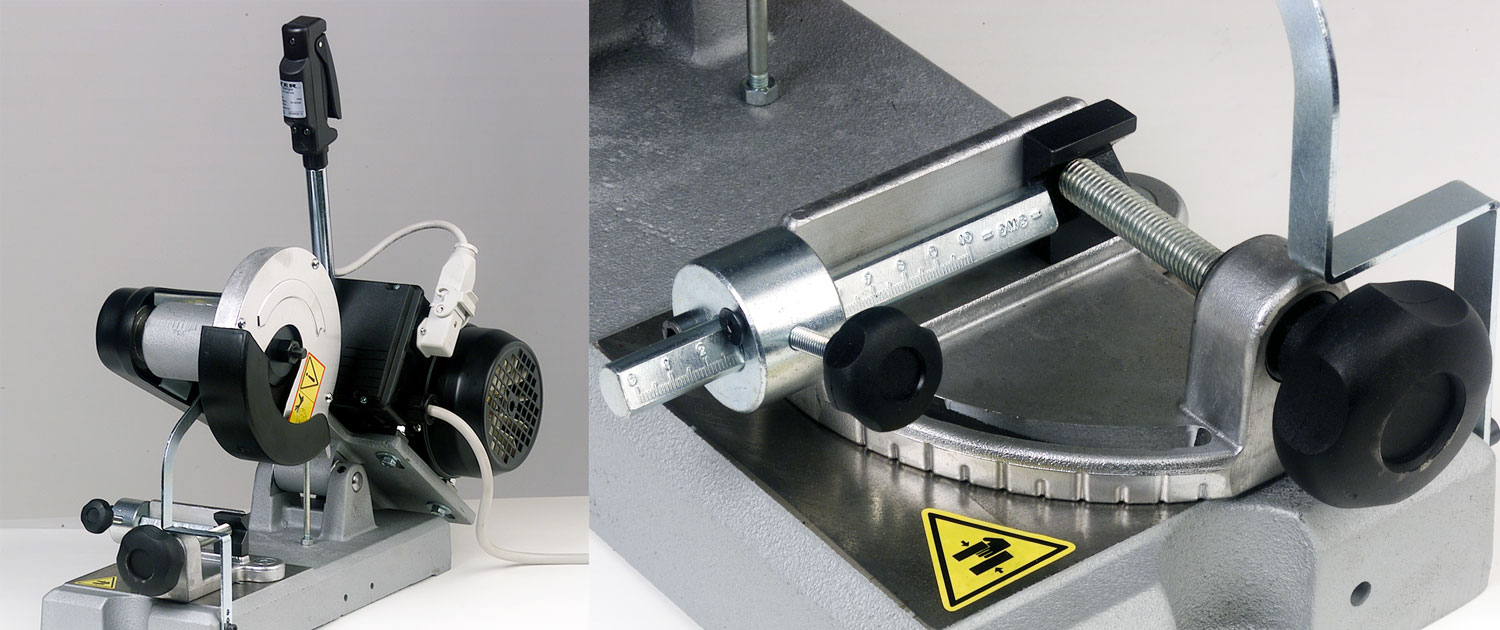

Group vice with manual tightening
